Short tee

T-101
€1.72HT
€2.06 tax incl.
More informations
Data sheet
  • Tube diameter : A 27 - Ø 26,9 mm
  • Tube diameter : B 34 - Ø 33,7 mm
  • Tube diameter : C 42 - Ø 42,4 mm
  • Tube diameter : D 48 - Ø 48,3 mm
  • Tube diameter : E 60 - Ø 60,3 mm
  • Tube diameter : T 21 - Ø 21,3 mm
  • Suitable for : 2 tubes
  • Connector angles : Angle 90°
  • finishes : Double galvanisation
Catalogue 2019-2020 FitClamp
101 step
  • From 20 product(s)
  • - 5.00 % discount
  • From 50 product(s)
  • - 10.00 % discount
  • From 100 product(s)
  • - 15.00 % discount

Description

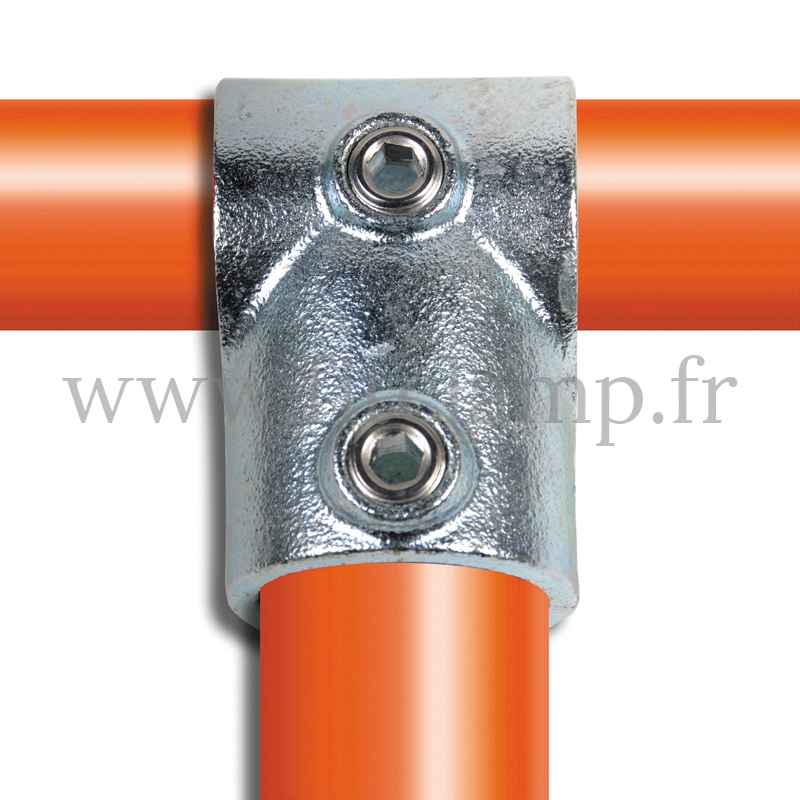

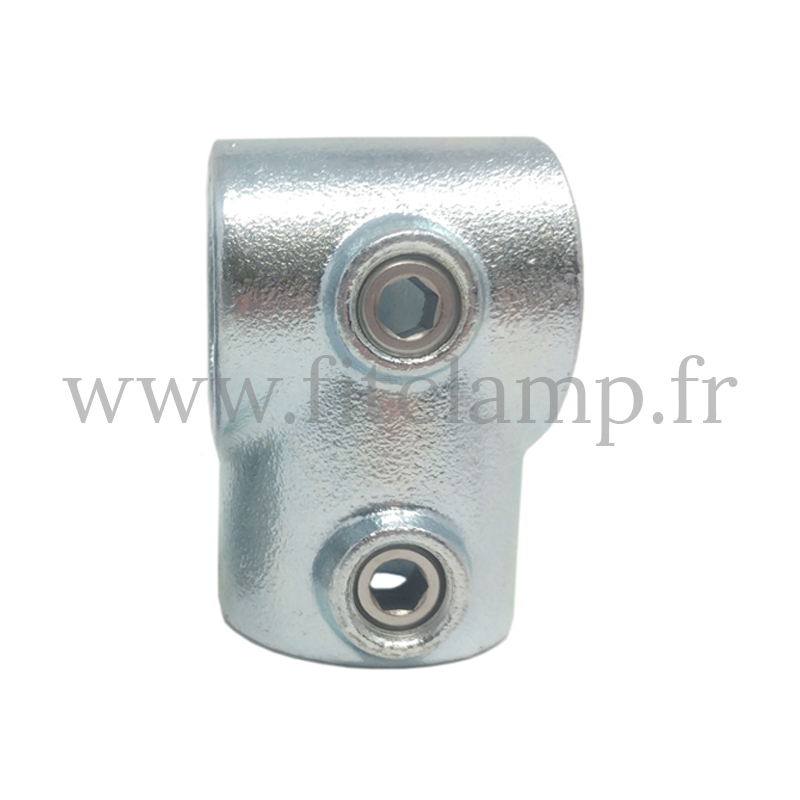

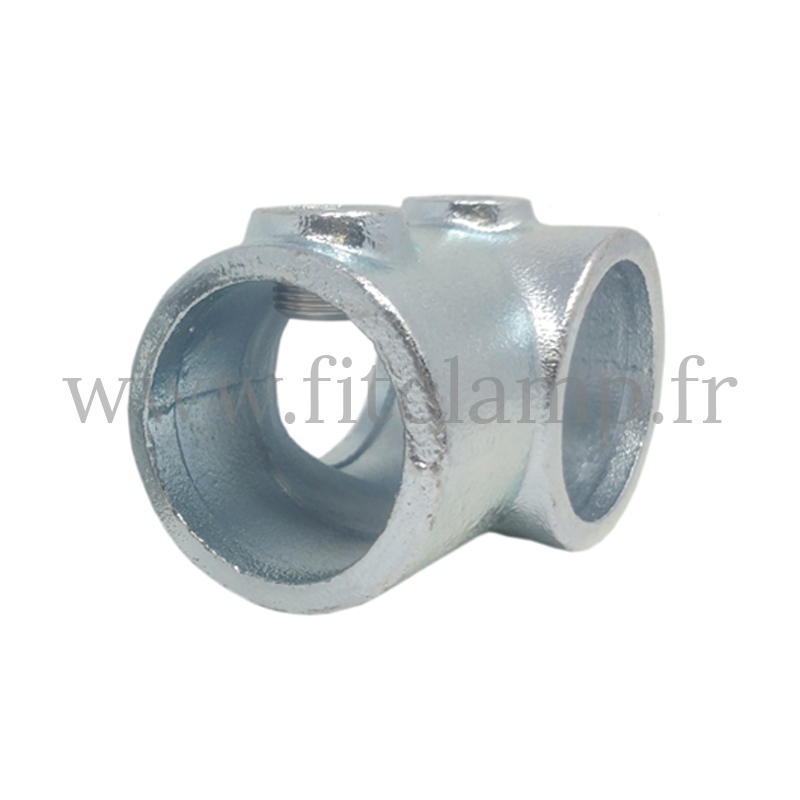

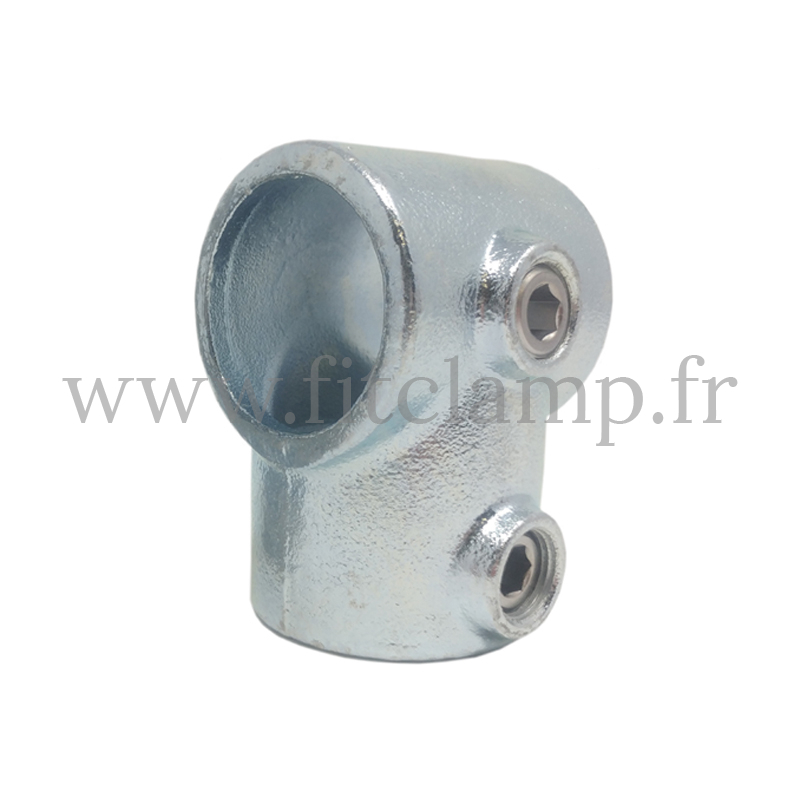

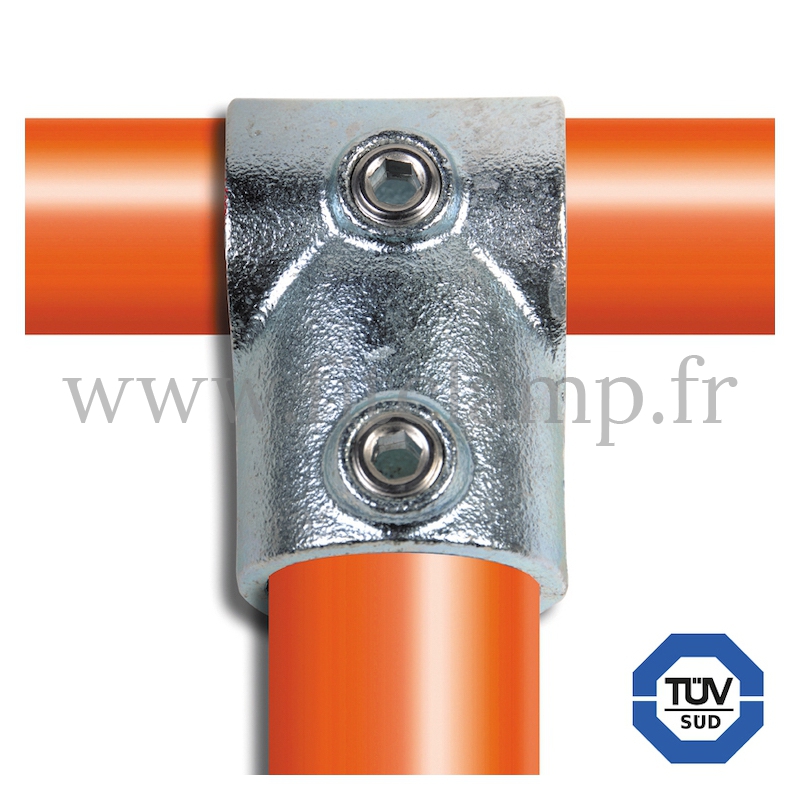

Short tee tube clamp fitting, reference 101, with double galvanised protection, for tubular structures. Suitable for connecting 2 tubes.

All FitClamp® tube clamp fittings are assembled with a simple Allen key. You don't need to weld or bolt together the different parts! Recommended tightening torque: 40Nm. Put together your tubular structure with ease.

Choose the relevant short tee size (reference 101) according to the diameter of your tubes.
