Tube clamp fitting 165 for tubular structures: Combination socket. FitClamp
search
  • Tube clamp fitting 165 for tubular structures: Combination socket. FitClamp
  • Combination socket
  • Tube clamp fitting 165 for tubular structures: Combination socket. Easy to install
  • Tube clamp fitting 165 for tubular structures: Combination socket
  • Tube clamp fitting 165 for tubular structures: Combination socket. With double galvanized protection. FitClamp
  • Comparative finish tubular fitting : single or double galvanizing. FitClamp

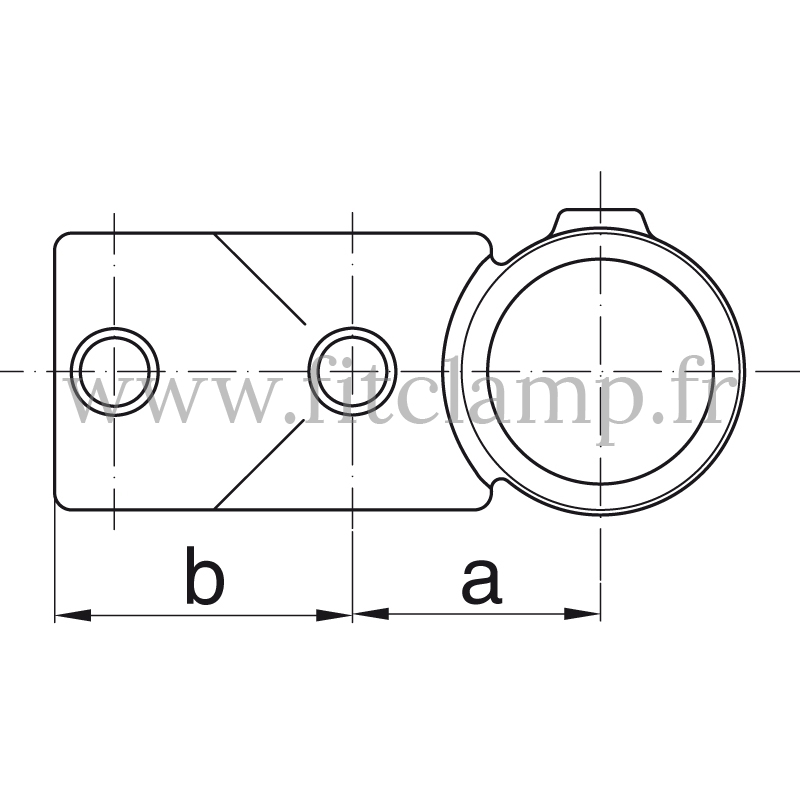

  • Tube clamp fitting. Size of Screw and Allen Key. FitClamp

Combination socket

A-165
€3.51HT
€4.21 tax incl.
More informations
Data sheet
  • Tube diameter : D 48 - Ø 48,3 mm
  • Tube diameter : A 27 - Ø 26,9 mm
  • Tube diameter : B 34 - Ø 33,7 mm
  • Tube diameter : C 42 - Ø 42,4 mm
  • Suitable for : 3 tubes
  • Connector angles : Angle 90°
  • finishes : Double galvanisation
  • From 20 product(s)
  • - 5.00 % discount
  • From 50 product(s)
  • - 10.00 % discount
  • From 100 product(s)
  • - 15.00 % discount

Description

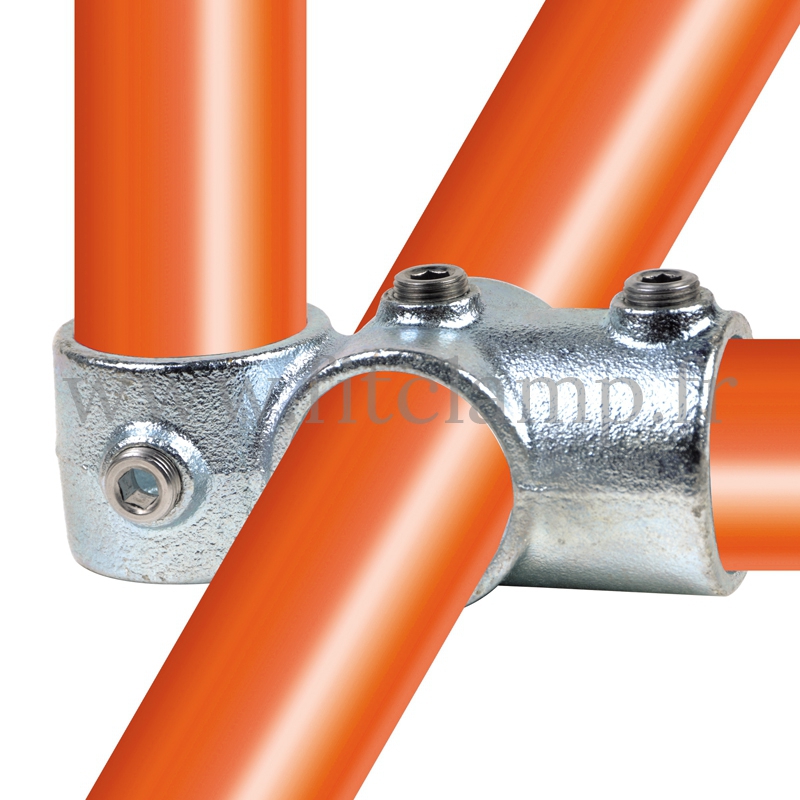

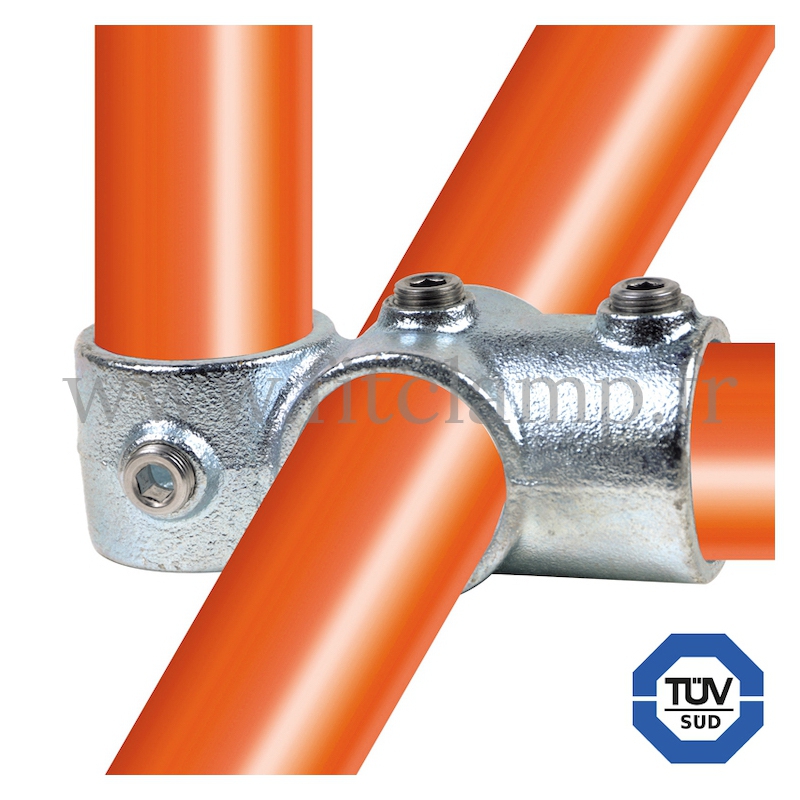

Combination socket tube clamp fitting, reference 165, with double galvanised protection for tubular structures. Suitable for joining 3 tubes.

All FitClamp® tube clamp fittings are assembled with a simple Allen key. You don't need to weld or bolt together the different parts! Recommended tightening torque: 40Nm. Put together your tubular structure with ease.

Choose the size of the combination socket clamp, reference 165, according to the diameter of your tubes.

5 1
